climate simulation programmable high and low temperature altitude test chamber
KOMEG High and low temperature altitude test chamber is mainly used to test the workpiece at low pressure, high temperature, low temperature under the action of single and at the same time the environmental adaptability and reliability of the test, and or electric performance parameters for the specimen electricity measurement.
1.Temperature range from -70 to 170℃
2. Altitude range ground to 100,000 feet
3.External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating systeClimate Simulation Programmable Altitude Test Chamber With Touch Screen Controllerm.
4.Adopts international brand of imported parts for cooling system to improve operation reliability
KOMEG Corresponding standard:
GB/T2423.1-2001 test A: Low temperature test
GB/T2423.2-2001 test B: High temperature test
GB/T2423.21-2001 test M: low pressure test
| Specifications | KOMEG |
| Model | KU-504L | KU-1000L | KU-504S | KU-1000S |
| Inner Size (D*W*H)mm | 800*700*900 | 1000*1000*1000 | 800*700*900 | 1000*1000*1000 |
| Capacity(KW) | 11 | 15 | 16 | 18 |
| Chamber Volume(L) | 504 | 1000 | 504 | 1000 |
| Performance | Temp range | -40℃~+150℃ | -70℃~+150℃ |
| Temp constancy | ±0.5% |
| Temp deviation | ≥100℃, ±3.0℃(at constant pressure with empty load) |
| <100℃, ±2.0℃(at constant pressure with empty load) |
| Cooling rate | 0.7℃~1.0℃/min(Overall average) |
| Pressure range | Constant pressure ~1kPa |
| Pressure constancy | When ≥40kPa, ±2kPa, 4kPa~40pKa ±0.5kPa, when≤4kPa, ±0.1kPa |
| Depressurization rate | Constant pressure~1kPa≤30mins(Normal temp) |
| Pressure recovery rate | 10kPa/Min(adjustable) |
| Material | Exterior material | Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate |
| Interior material | Stainless steel(SUS304) |
| Pressurized parts | High quality steel plate(Rust proof & Plastic spray treated) |
| Insulation material | High quality glass wool |
| Cooling System | Compressor | Semi-Hermetic Compressor |
| Cooling Mode | Water cooled |
| Temp regulating method | Balanced Temperature & Humidity Control System (BTHC) |
| Pump | Rotary vane type vacuum pump |
| Heater | Iron-chrome wire heater |
| Sight window | Circular viewing glass incorporating heat generator |
| Temp Sensor | Pt-100 |
| Controller | Touch Screen Controller |
| Safety Devices | Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm |
| Standard Accessory | Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2 |
| Power | AC380V/50Hz, 3Phase 5 wires+ Ground Wire. |
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available
|
Altitude chamber working principle

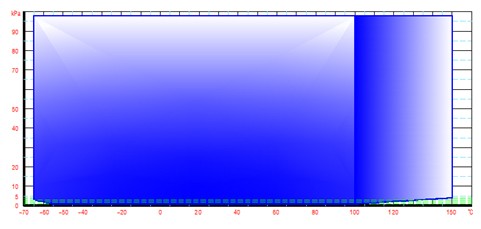

Temperature and pressure range chart
After-Sales Service
* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
