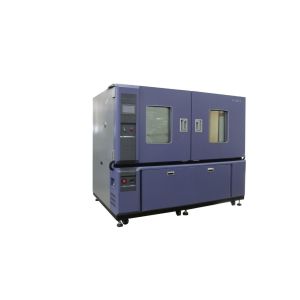

KOMEG Temperature And Humidity Chamber Easy To Operate Programmable Thermostat

Name: KOMEG Temperature And Humidity Chamber Easy To Operate Programmable Thermostat
Brand: KOMEG
Price: 1 USD

Brand Name : KOMEG

Model Number : KMHEG

Certification : CE/ISO

Place of Origin : China Dongguang

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : More Than 1,000 Sets Per Years

Delivery Time : 60 Work Days

Packaging Details : pp film and Wooden Case

Warranty : At least two years

Temperature : -20℃~+150℃

Temp Uniformity : ±2℃

Ambient Temp : +5ºC～+35ºC

Exterior Material : Baked Painting Steel

Contact Now

Advanced Technologies, easy to operate programmable thermostat , Test Chamber

● Advanced Technologies, easy to operate programmable thermostat

Specification :

Model	DTH-80A	DTH-80B	DTH-80C
Internal Dimensions WxHxD (mm)	400X500X400
External Dimensions WxHxD (mm)	1150X1150X1050
Temperature Range	(RT+10ºC) ~+150ºC	0~+150ºC	-20 ~+150ºC
Humidity Range	20%~98%R.H.
Indication Resolution/ Distribution Uniformity of Temperature and Humidity	0.1ºC; 0.1% R.H / ±2.0ºC; ±3.0% R.H.
Control Accuracy of Temperature and Humidity	±0.5ºC; ±2.5% R.H.
Temperature Rising /Falling Velocity	Temperature rising approx. 0.1~3.0ºC/min; temperature falling approx. 0.1~1.5ºC/min;
Interior and Exterior Material	Interior material is SUS 304# stainless steel,exterior is stainless steel or see cold-rolled steel with paint coated.
Insulation Material	Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System	Wind cooling
Protection Devices	Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories	Inner door with operation hole(Optional), Recorder(optional),Water Purifier
Compressor	French Tecumseh Brand, Germany Bizer Brand
Power	AC 220V(±10%), 1∮ 3 Lines , 50/60HZ;
Weight (Kg)	75

KOMEG Temperature And Humidity Chamber Easy To Operate Programmable Thermostat

Features
A. Reliability testing based on current test standards in the temperature range of -40 °C to 180 °C and 10% to 98% R.H.
B. The ideal simulation chamber for all heat and cold testing in the traditional temperature range -40 ºC and 150 ºC.
C. Forced ventilation loops design, balance temperature & humidity control system (BTHC).
D. We can provide custom-made machine and optional accessories satisfied your special requirements.
E. Improved programming and data collection via computer
F. Energy-saving operation, the KM-5166 controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system. Improvements in refrigeration and heater operation make the new generation of KOMEG environmental test chambers the most energy efficient ever.
