Large Capacity Programmable Temperature And Humidity Chamber -40℃ ～ +150℃

Name: Large Capacity Programmable Temperature And Humidity Chamber 40 150
Brand: komeg
Price: 1 USD

Wholesale Large Capacity Programmable Temperature And Humidity Chamber -40℃ ～ +150℃ from china suppliers

Brand Name : komeg

Model Number : KMH-1500R

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 pcs/day

Delivery Time : 30 days after confirm the order

Packaging Details : Rigid foam and wooden box

Temp range : -40℃ ～ +150℃

capacity : 1500L

Interior Material : SUS 304

System : Balanced and humidity control System

safety devices : No fuse breaker,over pressure

Packing : Rigid foam and wooden box

Contact Now

1500L Large Capacity Programmable Temperature Humidity Chamber -40℃ ～ +150℃

OEM and ODM are welcome

Description :

Able to accurately simulate a wide range of complicated natural environments, and is suitable for reliability

test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental testing

equipment and test methods for the basic parameters of electric and electronic products under the condition

of humidity, low temperature, high temperature, and constant heat.

Specification

Capacity(L)	1500L
Temperature range	L style : -40℃ ～ +150℃ ; R: -20℃ ～ +150℃ ; S:--70℃ ～ +150℃
Temp Deviation	≦ ± 2.0℃
Temp Fluctuation	±0.5℃
Heat up rate	Heating up rate:from -20℃ ↑ +80℃ Nonlinear 2℃min no load
Humidity range	20%R.H～98%R.H
Cooling rate	Cooling rate:from +80℃ down to -20℃ Nonlinear 3℃min no load
Chamber size	Interior size: W 700 × H 1250 × D 600 mm Exterior size: W 1250 × H 1630× D 1800 mm ( not include the chamber highlights)
Load	Product calorific value 1000w
Insulation box	Wall material: high-quality carbon steel nner wall material: SUS304 # matte stainless steel plate Insulation materials: rigid polyurethane foam insulation layer + glass fiber.

Other specification

Door	Single door, left open. Heating wire was installed at the door frames to prevent condensation at low temperatures.
Observation window	With observation window(according to design), multi-hollow electric insulation coated glass prevent condensation effectively
Lighting device	LED Lighting device *1 located on observation window
Heater	High quality nickel-chromium alloy wire electric heaters, Non-contact control mode(SSR)
Condensate drain hole	With workroom condensate and condensate drain.
Cable port	Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover
Shelf for samples	stainless steel sample holder 8pcs,Adjustable, load capacity 30kg/ layer

Application :

It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and materials under the conditions of high and low temperature and high temperature and humidity. For quality and reliability test of simulating temperature and humidity changes in electrical, electronic, mechanical and other products, parts and materials.

Feathers

● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test

● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test

● GJBl50.3-2009(MIL-STD-810D) High Temperature Test

● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test

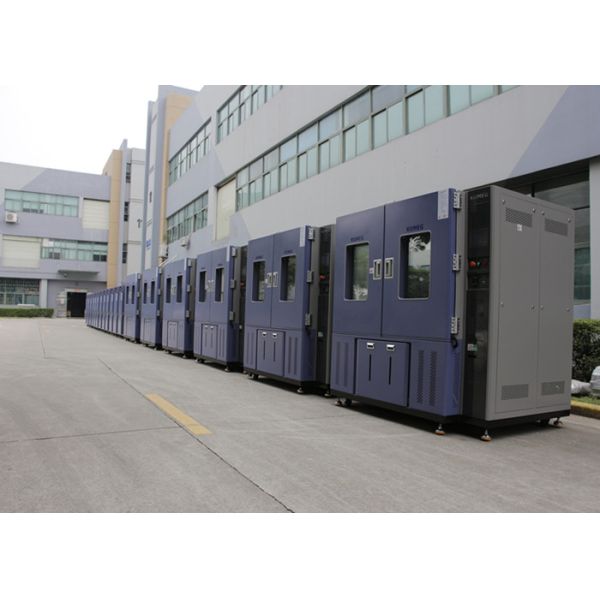

Photos show

Large Capacity Programmable Temperature And Humidity Chamber -40℃ ～ +150℃
