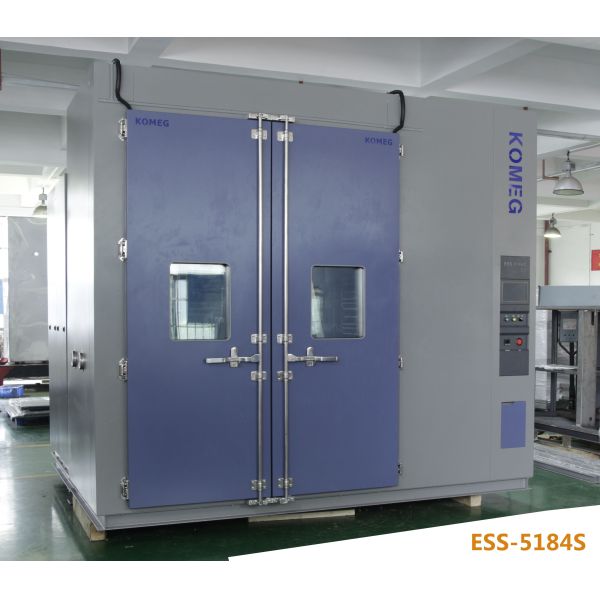

Hot Cold Impact Test Machine For Rapid Temperature Test
1. Application:
This equipment is widely applied for electronic and electric products, components and materials by constant high low temperature, temperature change, rapid rate temperature change ,damp heat etc environmental simulation reliability test.
2. Standards Implemented and Met
1. Manufacturing standard :
GB/T10586-2006 Specifications for damp heat chambers
GB/T10592-1989 Specification for low/high temperature test chambers
2. Inspection Standard :
GB/T5170.2-1996 Inspection methods for basic parameters of environmental testing equipments for electric and electronic products. Temperature testing equipments;
GB/T5170.5-1996 Inspection on methods for basic parameters of environmental testing equipments for electric and electronic products--Damp heat testing equipments
3. Specifications
| Model | ESS-SL |
| 5000SL15 |
| Working Chamber Volume(L) | 5000L |
| Temp Rate of Change( ºC /Min) | 15 ºC /Min |
| Temperature Range | -70 ºC～+100 ºC( Rapid Temp Change -55 ºC～+85 ºC Full Linear Control) |
| Humidity Constancy | ±0.5 ºC |
| Temp Constancy | ±3.0 ºC |
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel |
| Interior Material | Stainless Steel Plate(SUS 304) |
| Insulation Material | Rigid Polyurethane Foam |
| Safety Devices | over pressure,over heat and over current protection for compressor, over temp. protection, |
| Compressor | Semi-Hermetic Compressor |
| Cooling Mode | Water Cooled |
| Control system | Balanced Temperature & Humidity Control System(BTC type) |
| Heater | Iron-chrome wire heater |
| Blower | Centrifugal Blower |
| Observation Window | Glass incorporating heat generator |
| Temp Sensor | Pt-100 |
| Controller | Touch screen programmable controller |
| Ambient Temp. | +5ºC~+35ºC |
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire |
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
Features:
Hot Cold Impact Test Machine is divided into three sections: the high temperature chamber, the low temperature chamber and the testing chamber.
- The color touch panel control system was made in Japan can display Chinese / English. The big size liquid-crystal LCD has been adopted.
- High formula memory capacity may be set to 120 patterns. The maximum cycle setting is 9999cycles. The maximum setting of each section is 999 Hrs 59 Mins.
- Provide with RS-232C communication interface device, capable of controlling / editing/ recording in the linkage with the computer and two set dynamic connection point and convenient application.
- Both 2 zone and 3 zone shocks can be chosen.
- All equipment is fully automatic, and all process are precisely controlled with P.L.C.’S.
- Of any part of the malfunctions, the machine will automatically shuts down and a warning light switches on.
- Machine can be shut down automatically in case of electrical power instabilities
5. Material:
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
