Lab Temperature And Humidity Test Chamber

Name: Lab Temperature And Humidity Test Chamber
Brand: komeg
Price: 1 USD

Wholesale Lab Temperature And Humidity Test Chamber from china suppliers

Brand Name : komeg

Model Number : KMH441

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 pcs/day

Delivery Time : 30 days after confirm the order

Packaging Details : Rigid foam and wooden box

Interior dimension : W 1200 × D 800 × H 500 mm

External dimension : W 1700 × D 950 × H 1210 mm

Power : 220V / 50HZ. 15KW

Test room : 35℃±1℃

Air pressure barrels:47℃±1℃ : 47℃±1℃

Corrosion resistance test : CASS

Contact Now

Lab Environmental Climatic System Temperature Controlled Test Chamber

Ⅰ. Product Overview
Able to accurately simulate a wide range of complicated natural environments, and is suitable for reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental testing equipment and test methods for the basic parameters of electric and electronic products under the condition of humidity, low temperature, high temperature, and constant heat.
Ⅱ. Application
It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and materials under the conditions of high and low temperature and high temperature and humidity. For quality and reliability test of simulating temperature and humidity changes in electrical, electronic, mechanical and other products, parts and materials.
Ⅲ. Features
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test ● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test ● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test ● GJBl50.3-2009(MIL-STD-810D) High Temperature Test ● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test ● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test ● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test ● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test
1．Energy conservation	Bypass mode to adjust cooling capacity to achieve a constant temperature and humidity effectively
2．Easy Operation	※Using company owned brand KOMEG KM-5166 LCD touch screen controller with PID control parameters setting ※Flexible approach for data collection and recording
3．High reliability	※Key parts are imported, ensuring the service life and high reliability ※Efficient oil separator to ensure the service life of the compressor

Ⅳ. Main technical parameters (Air cooled, room temperature +25℃, no load )
1. Temperature
1.1 Temperature range	-20℃ ～ +150℃
1.2 Temp Deviation	≦ ± 2.0℃
1.3 Temp Fluctuation	±0.5℃
1.4 Temp Uniformity	±2.0℃
1.5 Ramping and soaking rate	Heating up rate: -20℃↑ +100℃ about 35min (no-load, ambient temperature +25℃) Cooling rate: 20 ℃to -20℃ about 45min (no-load, ambient temperature +25℃)
2. Humidity
2.1 Humidity range	20%R.H～98%R.H

3.3 Humidity deviation	±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH)
3.4 Humidity uniformity	3.0％RH (no-load)
3.5 Humidity fluctuation	±2.0％RH
Temperature and humidity performance test is in accordance with the relevant provisions of the IEC60068 -3 standard measurement; sensor placed in the unit outlet.

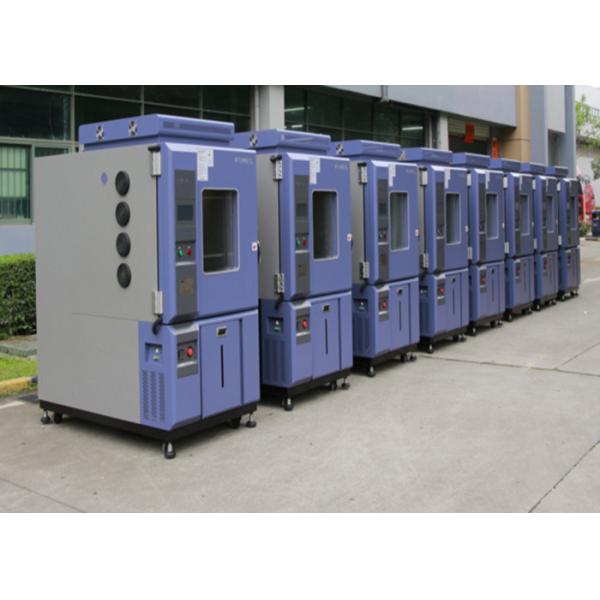

Photos show

Lab Temperature And Humidity Test Chamber
