Applicable Industries:
KOMEG Top grade electronic temperature humidity testing machine is widely used in much industriesTest material heat, cold, dry resistance, humidity resistance. Suitable for electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products
2.Features:
Temperature and humidity test chamber:
1. Specializing in the environmental test chamber for 27 years
2. Valued customers: HUAWEI, TCL, EMERSON, Epson, OMRON, GREE, FOXCONN, etc.
3. Imported Tecumseh or Danfoss compressor
4. LED Touch Screen Controller
5. One year free parts warranty
3.Specification
| Technical parameters: |
| Environmental Temperature and Humidity Chamber |
| Specifications ( at +20°C room temp. Or+25°C water temp with empty load) |
| Model | KMH-S series |
| 225S | 408S | 800S | 1000S |
| Interior size | W(mm) | 700 | 700 | 1000 | 1000 |
| H(mm) | 700 | 750 | 1000 | 1000 |
| D(mm) | 480 | 800 | 800 | 1000 |
| Exterior size | W(mm) | 980 | 980 | 1280 | 1280 |
| H(mm) | 1890 | 1940 | 2160 | 2160 |
| D(mm) | 1460 | 1740 | 1750 | 1950 |
| Weight(KG) | 330 | 450 | 550 | 650 |
| Temp. range | -70 °C ~+150°C |
| Humidity Range | 20 ~ 98&R.H. |
| Temp. constancy | ±0.5ºC |
| Humidity constancy | ±2.5%R.H |
| Humidity uniformity | ±3.0%R.H | ±5.0 % R.H |
| Heat uptime | -70°C ~ +100°C, within 60 min |
| Pull downtime | +20°C ~ -70°C, within 80 min |
| Equipment Power | 9.5KW | 10.6KW | 18.5KW | 18.5KW |
| Ambient Temp. | 5ºC ~+35ºC |
| Standard accessories | Sight window*1, cable port(port 50mm)*1, shelves*2, chamber lamp*1, power cable *2m |
| Safety device (standard) | No fuse breaker, overpressure overheat and over current protection for compressor, |
| Over temp. protect, overload protect of the blower, dry heat protection |
| Control System | Balanced Temperature & Humidity Control System |
| Refrigeration system | Air Cooled (Water Cooled Type is an option) |
| Hermetic compressor, Cascade Refrigeration |
| CFC-Free refrigerant(HFC-507/HFC-23) |
| Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable |
| Operation model: Program or fixpoint running |
| Memory capacity :120programs,1200steps, |
| All repeat 999 cycles, part repeat 99 cycles |

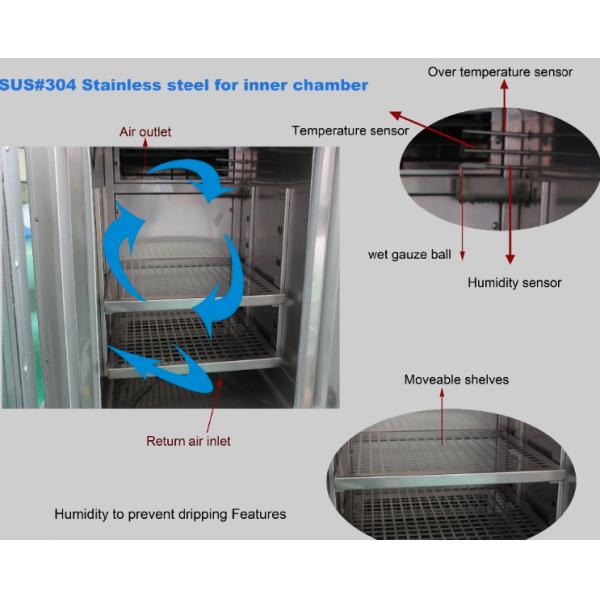

| Interior material | Stainless Steel Plate ( SUS 304 ) |
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) |
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool |
| System | Balanced & Humidity Control System |
| Wiring method | AC 380±10 % 50Hz,3 phase 4 wires +Ground Wires |
Note: 1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available |
1. High-texture appearance, the body adopted an arc shape, surface matte stripes processing, and flat-handle, easy to operate, safe and reliable.
2. Rectangular multi-layer glass View window, the use of guinea pigs observed in the test window with anti-sweat heaters device prevents water gas condensate, Knot, water droplets, PL fluorescent lamps to keep the inside lighting.
3. Door bunk isolated airtight packing can be effectively isolated from the internal temperature of the leak
4.With an external water supply system, convenient to supplement the cylinder water supply, and automatic recovery using.
5.Compressor cycling system which can effectively remove condenser pipe and between capillary Lubricating oil and whole series adopt environmental protection refrigerant (R23, R404, R507)
6. The controller uses the imported LED display screen, can display measured values and setting time
7. Controller with multi-segment program editor and temperature and humidity can be fast (OUICK) or slope (SLOP) controlled.
8. Built-in mobile wheels allow easy movement and placed and have a strong positioning screw position.
9. More energy efficient, newly developed refrigeration system, improves refrigeration circuit reliability, save electricity 30%
