Electronics Climatic Test Chamber Temperature & Humidity Testing Chamber

Brand Name : KOMEG

Model Number : KMH-1500

Certification : CE, ISO

Place of Origin : guangdong, China

MOQ : 1set

Price : USD 5000-15000/SET

Supply Ability : 500/SET/YEAR

Delivery Time : 40-45 days upon your deposit

Packaging Details : Each set protected with resin fiber and PP film, then put into strong plywood case with operation manual inside.

Product Name : Electronics Climatic Testing Chamber

Usage : Lab,industrial

Theory : Temperature Controller

Accuracy : 0.5

Temp. range : -40℃~+150℃

Humidity Range : 20~98%R.H

Material : Stainless Steel 304

Warranty : 1 Year

Contact Now

2017 New Products Electronics Climatic Temp.& Humidity Testing Chamber

Product Description


2017 New Products Electronics Climatic Temp.& Humidity Testing Chamber is used to test various types of material for their tolerances of heat, cold ,dry, humidity .It is applied for quality inspection for all types of big test samples,
such as electronic products, electric appliance, and products from communication ,instrument ,automobile ,plastic ,metal ,food ,chemical building materials ,medical and aerospace industries.

Specification

Model KMH-S series
150S 225S 408S 800S 1000S
Temp. range -70°C ~150°C
Interior sizel W(mm) 600 700 700 1000 1000
H(mm) 600 700 750 1000 1000
D(mm) 460 480 800 800 1000
Exterior size W(mm) 880 980 980 1280 1280
H(mm) 1730 1890 1940 2160 2160
D(mm) 1400 1460 1740 1750 1950
Power(KW) 5.8 6 7.5 12.8 12.8
Weight(KG) 280 330 450 550 650
Humidity uniformity ±3.0%R.H ±5.0%R.H
Heat up time -70°C ~+100°C ,within 60 min
Pull down time +20°C ~-70°C , within 80 min
Humidity Range 20~98%R.H
Temp. constancy ±0.5ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0ºC
Safety device (standard) NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C ~+35°C
Wiring method AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires
Controller LCD Touch Screen, Chinese or English display selectable
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles

Advantage


Climatic Temperature And Humidity Test Chamber
1. Manufacturer sale directly, we will offer a best price for you.
2. Strict quality control in production.
3. Warranty for 12 months.
4. Customization of non-standard models are welcomed.

Products


Electronics Climatic Test Chamber Temperature & Humidity Testing ChamberElectronics Climatic Test Chamber Temperature & Humidity Testing Chamber

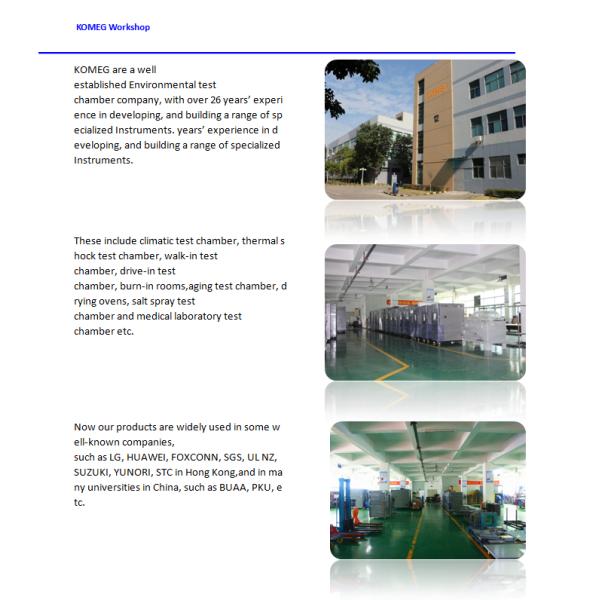

Company Show


Electronics Climatic Test Chamber Temperature & Humidity Testing Chamber

Our Service

  1. We have standard inner box and carton for the packing.
  2. If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
