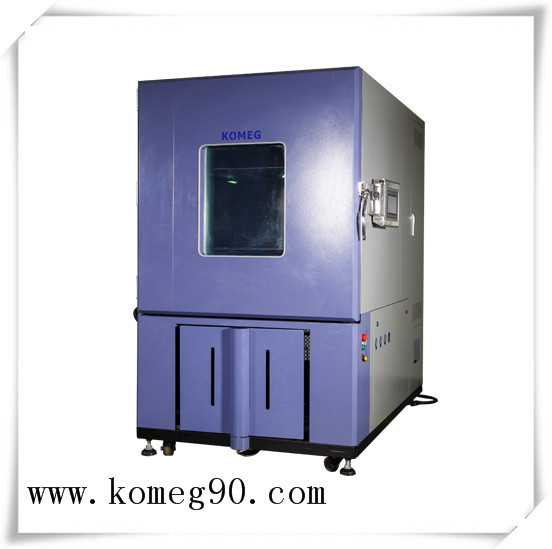

Programmable climatic testing machine/humid chamber/environment test chamber
Detail of product
This equipment is simulated temperature, humidity environment, widely used to determine the electrical, electronics ‘adaptability for environmental temperature and environment humidity (especially in the products ‘ changes of electric capability and mechanical properties ), can also be used to inspect a sample tolerance with corrosion
1. Application
Introduction:Test material heat, cold, dry resistance, humidity resistance.Suitable for electronics,
electrical appliances,communications, instrumentation, vehicles, plastic products, metal, food,
chemical, building materials, medical, aerospace and other products.
2. Material:
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
3. Refrigeration system:
Air Cooled (Water cooled Type is option)
Hermetic compressor, stag refrigeration system
Imported Tecumseh or Danfoss Compressor
4. Controller:
Digital Touch Screen
127 program, running for extremely long time,999 hours per segment, maximum 3200 times circulation
support RS485,LAN (internet access), GPRS (mobile phone) etc. communication mode. Conveninet for remote monitoring and data sampling.
5. Technical Specification:
(1) KMH-R series
| Model | KMH-R series |
| 150R | 225R | 408R | 800R | 1000R |
| Temp. range | -20°C ～150°C |
| Interior size | W(mm) | 600(mm) | 700(mm) | 700(mm) | 1000(mm) | 1000(mm) |
| H(mm) | 600(mm) | 700(mm) | 750(mm) | 1000(mm) | 1000(mm) |
| D(mm) | 460(mm) | 480(mm) | 800(mm) | 800(mm) | 1000(mm) |
| Exterior size | W(mm) | 880(mm) | 980(mm) | 980(mm) | 1280(mm) | 1280(mm) |
| H(mm) | 1730(mm) | 1890(mm) | 1940(mm) | 2160(mm) | 2160(mm) |
| D(mm) | 1400(mm) | 1460(mm) | 1740(mm) | 1750(mm) | 1950(mm) |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 |
| Weight(KG) | 240 | 280 | 400 | 500 | 580 |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H |
| Heat up time | -20°C ～+100°C ,within 35 min |
| Pull down time | +20°C ～-20°C , within 45 min |
| Humidity Range | 20～98％R.H |
| Temp. constancy | ±0.5ºC |
| Humidity constancy | ±2.5％R.H |
| Temp. uniformity | ±2.0ºC |
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection |
| Interior material | Stainless Steel Plate(SUS 304) |
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) |
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool |
| Ambient Temp. | +5°C ～+35°C |
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires |
| Controller | LCD Touch Screen, Chinese or English display selectable |
| Operation model :Program or fix point running |
| Memory capacity :120programs,1200steps, |
| All repeat 999 cycles, part repeat 99 cycles |
(2)KMH-L series
| Model | KMH-L series |
| 150 L | 225 L | 408 L | 800 L | 1000 L |
| Temp. range | -40°C ～150°C |
| Interior size | W(mm) | 600(mm) | 700(mm) | 700(mm) | 1000(mm) | 1000(mm) |
| H(mm) | 600(mm) | 700(mm) | 750(mm) | 1000(mm) | 1000(mm) |
| D(mm) | 460(mm) | 480(mm) | 800(mm) | 800(mm) | 1000(mm) |
| Exterior size | W(mm) | 880(mm) | 980(mm) | 980(mm) | 1280(mm) | 1280(mm) |
| H(mm) | 1730(mm) | 1890(mm) | 1940(mm) | 2160(mm) | 2160(mm) |
| D(mm) | 1400(mm) | 1460(mm) | 1740(mm) | 1750(mm) | 1950(mm) |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 |
| Weight(KG) | 250 | 300 | 420 | 530 | 600 |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H |
| Heat up time | -40°C ～+100°C ,within 45 min |
| Pull down time | +20°C ～-40°C , within 60 min |
| Humidity Range | 20～98％R.H |
| Temp. constancy | ±0.5ºC |
| Humidity constancy | ±2.5％R.H |
| Temp. uniformity | ±2.0ºC |
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection |
| Interior material | Stainless Steel Plate(SUS 304) |
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) |
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool |
| Ambient Temp. | +5°C ～+35°C |
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires |
| Controller | LCD Touch Screen, Chinese or English display selectable |
| Operation model :Program or fix point running |
| Memory capacity :120programs,1200steps, |
| All repeat 999 cycles, part repeat 99 cycles |
(3)KMH-S series
| Model | KMH-S series |
| 150S | 225S | 408S | 800S | 1000S |
| Temp. range | -70°C ～150°C |
| Interior sizel | W(mm) | 600(mm) | 700(mm) | 700(mm) | 1000(mm) | 1000(mm) |
| H(mm) | 600(mm) | 700(mm) | 750(mm) | 1000(mm) | 1000(mm) |
| D(mm) | 460(mm) | 480(mm) | 800(mm) | 800(mm) | 1000(mm) |
| Exterior size | W(mm) | 880(mm) | 980(mm) | 980(mm) | 1280(mm) | 1280(mm) |
| H(mm) | 1730(mm) | 1890(mm) | 1940(mm) | 2160(mm) | 2160(mm) |
| D(mm) | 1400(mm) | 1460(mm) | 1740(mm) | 1750(mm) | 1950(mm) |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 |
| Weight(KG) | 280 | 330 | 450 | 550 | 650 |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H |
| Heat up time | -70°C ～+100°C ,within 60 min |
| Pull down time | +20°C ～-70°C , within 80 min |
| Humidity Range | 20～98％R.H |
| Temp. constancy | ±0.5ºC |
| Humidity constancy | ±2.5％R.H |
| Temp. uniformity | ±2.0ºC |
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection |
| Interior material | Stainless Steel Plate(SUS 304) |
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) |
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool |
| Ambient Temp. | +5°C ～+35°C |
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires |
| Controller | LCD Touch Screen, Chinese or English display selectable |
| Operation model :Program or fix point running |
| Memory capacity :120programs,1200steps, |
| All repeat 999 cycles, part repeat 99 cycles |
6.Features:
Temperature and humdity climatic test chamber:
- Beautiful appearance, universal wheel of the base structure is scientific, reasonable and convenient to move;
- Unique air circulation system, small deviation of temperature humidity, and higher uniformity. Imports of electrical control spare parts, greatly improving equipment reliability;
- System is easy to operate, stable performance, maintenance is convenient and low cost
7. Packing Info
We use standard inner box PP film and carton plywood for the packing.
