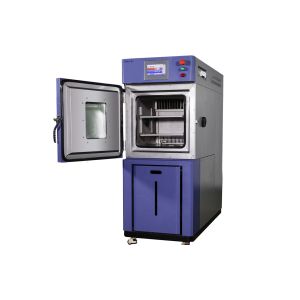

CE High And Low Temperature Test Chamber Water Electricity Seperation Design
In addition to Programmble climatic chamber , we are also manufacturing:
Programmable Temperature Humidity Tester; Temperature Humidity Testing Machine; Enviromental Testing Machine; High Low Temperature Tester; Temperature Humidity Test Chamber; Temperature Humidity Chamber; Environmental Test Chamber; Temperature Humidity Testing Equipment; Climatic Test Chamber; Climatic Control Chamber; Is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage,
adhesion tape, printing, packaging, etc.
Our Services
1. Pre-service
24 Hours online service for your consult
Help choose right model with series of service,person, and adviece
2. Middle service
--Give you best offer
--Provide favourable discount
--Meet your demand
--Choose payment term you convienent
--Promptly production and delivery, inform you in time
--Provide invoice value as you like to decrease your tax
3. After-sale service
--1-year warranty service
--Technical Egineer are avalible for oversea trainning
--Free change for some parts
--Remote control technical consult
--Maintenance plan
4. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Parameter Specifications:
| Model | KMH-150S |
| 150L chamber volume |
| Temp. range | -70°C ～150°C |
| Display resolution | 0.1°C |
| Temperature stability | High±0.5°C ,low ±1.0°C |
| Temperature uniformity | ±2.0°C |
| Heat up time | -70°C ～+100°C,within 60 min |
| Pull down time | +20°C ～-70°C,within 80 min |
| Interior Dimension(mm) | W 600 x H 600 x D 460mm |
| Exterior Dimension(mm) | W 880 x H 1730 x D 1400mm |
| Interior material | Stainless Steel Plate ( SUS 304) |
| Exterior material | Baked Painting Steel Or Stainless steel ( SUS304) |
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool |
| Total power | 7KW(heater 3KW included) |
| Max current | 17.6A |
| Ambient Temp. | +5°C ～+35°C |
| Power Supply | | AC 380V±10％ 50Hz ,3 phase 4 wires +Ground Wires |
| Weight | 260KG |
| Sight window size | 370 X 450mm |
| Sample holder | 2 pcs |
| Fittings | cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m |
| Safety device (standard) | No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect |
| Control System | Balanced Temperature & Humidity Control (BTHC)System |
| Refrigeration system | Air Cooled (Water Cooled is option) |
| Hermetic compressor |
| Single stage refrigeration system, CFC-Free refrigerant(HFC-507/HFC-23) |
| Controller | 7-inch LCD Touch Screen panel |
| Operation model :Program or fix point running |
| Memory capacity :120programs,1200steps, |
| All repeat 999 cycles, part repeat 99 cycles |
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
Factory Tour --- Why KOMEG IS Your Right Choice?
Specialized in climatic test chamber since 1990
Main parts are imported famouse brand like Tecumseh, Danfoss, Bizter, ESK,Ranco,Castel,etc.
Passed ,CE,TUV,etc. third party certification
Recognized by Global 500 Enterprises like EMERSON, SIEMENS, Minolta, Epson, HUAWEI, TCL,etc
Environmental friendly, low energy consumption and easy maintenance
High cost-effective and steady delivery time
Experienced and trained staffs assure good service
